Chainsaws Were Originally Invented to Help With Childbirth

By: Jennifer Walker-Journey  |

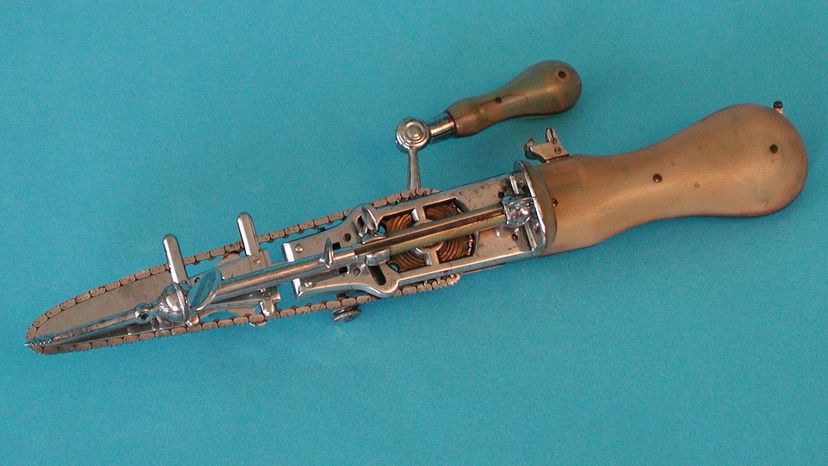

Heine medical chain saw
Bernhard Heine's design, similar to modern chainsaws, cut through human bone quickly, without the patient enduring blows from a hammer and chisel, or the jarring from a regular amputation saw. National Museum of Health and Medicine photo illustration by Matthew Breitbart/Released

If you've ever asked yourself, "Why were chainsaws invented?" you'd probably be surprised to learn that it wasn't for cutting wood. The first chainsaw was originally invented to aid in childbirth

"It sounds horrible. It was," says Dr. Anthony Tizzano, an obstetrician-gynecologist in Ohio. Tizzano has one of the most extensive private collections of Ob/Gyn artifacts and medical books in the United States, all housed in the Tizzano Museum of Obstetrics, Gynecology, Medical Antiques & Women's Health History.

Advertisement

While certainly cringe-worthy, the medical chainsaw invented at the time played a life-saving role during childbirth at a time when there were no safer options in cases of obstructed labor — and long before anyone realized the same mechanism could be a boon to the timber industry.

Birthing Babies in the Olden Days

Even though women have been birthing babies since, well, the beginning of humankind, labor was especially difficult before modern medical advancements such as antibiotics, anesthesia and hygiene practices like hand-washing.

When a woman suffered complications during labor, it could be life-threatening. A caesarian section was rarely considered because it was thought dangerous to both the mother and child because of the high risk of infection. So, doctors were forced to try alternative methods.

Advertisement

In the 1770s, French medical doctor Jean-René Sigault came up with a possible solution to delivering babies stuck in the birth canal. Sigault was inspired by the writings of Severin Pineau, a French surgeon in the late 1500s who had described a "diastasis of the pubis" (separation or dislocation of the pubic symphysis or joint) in a pregnant woman who was hanged.

Sigault's idea was to surgically separate the pelvic joint to create a larger opening in the pelvis. If it was successful, it would allow the baby to pass through the birth canal.

In October 1777, Sigault and his assistant Alphonse le Roy tested the method on the first patient. Madame Souchot was a 40-year-old woman with a contracted pelvis due to rickets that prevented her from delivering vaginally. She'd already lost four babies, and the medical community thought she had no chance of bearing live children without a caesarian section. But, a cesarean section would have likely killed her.

With little to lose, Sigault cut through Souchot's pubic joint, successfully performing the first so-called symphysiotomy. Both the mother and baby's life were saved, and symphysiotomies soon became routine for women experiencing obstructed labor.

Advertisement

Two Scottish Doctors Improve the Symphysiotomy

Aitken's chain saw
The Aitken's chainsaw was used to improve the symphysiotomy surgery. It created less trauma to adjacent tissues than rigid saws that were typically used during the procedure. The Tizzano Museum/Public Domain

In 1785, Scottish doctors and obstetrician John Aitken and James Jeffray improved on the symphysiotomy method using a tool that later became known as the Aitkens flexible chainsaw.

The cutting device was specifically designed to make removing the woman's pelvic bone easier and less time-consuming during childbirth. The flexible chainsaw also caused less trauma to adjacent tissue than the rigid saws and sharp knives typically used to perform the procedure.

Advertisement

The Aitkens flexible chainsaw — what Tizzano calls a "unique and rare" find in his collection of antique surgical tools — was made with a fine serrated link chain with teardrop-shaped handles on both ends. One of the handles was removable so doctors could attach a blunt-pointed needle to the end of the chain.

The doctors used the needle to guide the chain behind the pubic bone in preparation for the symphysiotomy. The surgeon would then move their hands back and forth to "saw" through the pelvic bone faster than they could with a sharp knife and with greater precision.

In the 1890s, Italian obstetrician Leonardo Gigli developed what became known as the Gigli twisted wire saw. This chainsaw was similar in function to the Aikens saw but had T-shaped handles that were easier to grasp. It also had a chain of twisted wire with sharp little teeth that were finer and easier to position.

Around the turn of the century, the symphysiotomy began losing favor, thanks to improved medical procedures, hospital hygiene and general anesthesia, making C-sections safer. The Gigli twisted wire saw was used to amputate diseased bone and cutting operations.

Today, amputations are performed with modern power tools. However, flexible chainsaws like the Gigli wire are still used during some medical procedures where precision and control are paramount.

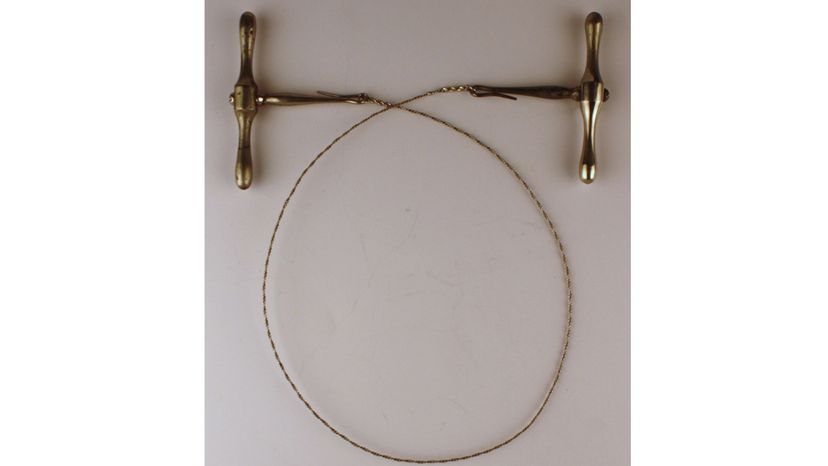

Gigli chain saw
Gigli's simple, inexpensive saw proved very effective and occupied minimal space. It remains a valuable instrument today, notably for amputations and bone cutting operations.
The Tizzano Museum/Public Domain

Advertisement

Bernhard Heine's Version of the First Chainsaw

In 1830, orthopedic technician-turned-orthopedic surgeon Bernhard Heine shook up the medical and physical sciences with a new medical chainsaw invention. Heine had designed and built many of his own instruments and appliances through the years, but nothing was as renowned as his chain osteotome.

Similar to the modern chainsaw (which bears a slight resemblance to the chain osteotome), the instrument had little "teeth on the exterior, grooves on the inside corresponding to spurs on the motive wheel," according to Tizzano's circa 1889 copy of George Tiemann & Co.'s Surgical Instruments catalog. It also had a "thin, knife-like plate (deeply grooved longitudinally), over which, and the motive wheel, the saw is extended."

Advertisement

Heine's osteotome had a hand crank and could cut through bone comparatively quickly, saving the patient from blows of a hammer and chisel or the jarring of a regular amputation saw. (This was golden, considering anesthesia was rarely used at the time.)

Symphysiotomies were still being performed then, but the osteotome was never used for this surgical procedure, Tizanno assures, as the operation required an initial approach that was not possible with Heine's version of the chainsaw.

However, the osteotome was adjustable, making it ideal for other delicate surgeries. Guards on the chainsaw could be configured to minimize the area of the patient that had to be cut. This prevented soft-tissue damage, which allowed surgeons to perform surgical procedures like craniotomies without splintering bones or damaging surrounding tissue, including the brain.

There were some drawbacks to the osteotome, though. It was a pricy surgical instrument, ringing in at $300 in Tiemann's 1872 catalog compared to just $5 for standard medical chainsaws. (These days, pristine, cased and complete examples of antique Heine osteotomes have sold for upward of $30,000, Tizzano says.) Furthermore, using it required a great deal of skill and, unfortunately, Heine was one of the few who mastered it.

medical chain saw
Bernard Heine's chainsaw, known as the osteotome, used a hand crank but was still difficult to use. Heine was one of the only surgeons who ever mastered using it.
Wikimedia/(CC BY-SA 4.0)

Advertisement

Andreas Stihl Invents the Electric Chainsaw

It took a while before someone realized that a saw used for opening birth canals could make felling trees a lot easier. Some credit inventor and naturalist John Muir for being the first to make this leap in 1897. However, his invention was a large mechanical machine that weighed hundreds of pounds and required a crane for operation. Because of its impracticality, it failed to gain commercial success.

In 1905, San Francisco-based logger Samuel J. Bens applied for a patent for his "endless-chain saw," which he said was based on Heine's original osteotome. His tool was also rather large, required more than one user, and thus, was similarly impractical. More than a decade later, Canadian James Shand patented the first portable chainsaw, though "portable" was a stretch considering its bulkiness.

Advertisement

In 1926, German mechanic Andreas Stihl patented the first electric chainsaw for logging purposes. Stihl followed that invention with a gas version three years later. However, both required more than one person to operate.

The first one-person chainsaw wouldn't be put into production until the 1950s. That cleared the path for modern chainsaws, and the rest, as they say, is history.

stihl chain saw
Andreas Stihl invented the electric- and gas-powered chainsaws in the 1920s. Today Stihl still is one of the largest manufacturers of powered chain saws.
Stihl

Advertisement

Frequently Asked Questions

How did the invention of the chainsaw evolve from medical use to forestry?
Engineers and inventors saw the potential for such a mechanism to cut wood. Over time, the design was adapted and scaled up to accommodate larger blades and the power needed to cut through trees, leading to the development of the modern chainsaw used in forestry today.
What surgical instruments were inspired by nonmedical tools?
Some surgical instruments inspired by nonmedical tools include the dermatome, inspired by a carpenter's plane for skin grafts, and various endoscopic tools, whose development was influenced by the design and technology of telescopes and cameras.
