How Bunker Busters Work

By: Marshall Brain  |
GBU-28 Bunker Buster
Photo courtesy Air Force

Key Takeaways

  • Bunker busters are specialized munitions designed to penetrate deep into the ground or through heavy fortifications before detonating.
  • The use of depleted uranium in some bunker busters poses environmental and health risks, due to its radioactivity.
  • Nuclear bunker busters, like the B61-11, combine penetrating capabilities with nuclear explosive power, raising environmental, diplomatic and ethical concerns due to their immense destructive potential and the fallout they generate.

There are thousands of military facilities around the world that defy conventional attack. Caves in Afghanistan burrow into mountainsides, and immense concrete bunkers lie buried deep in the sand in Iraq. These hardened facilities house command centers, ammunition depots and research labs that are either of strategic importance or vital to waging war. Because they are underground, they are hard to find and extremely difficult to strike.

The U.S. military has developed several different weapons to attack these underground fortresses. Known as bunker busters, these bombs penetrate deep into the earth or right through a dozen feet of reinforced concrete before exploding. These bombs have made it possible to reach and destroy facilities that would have been impossible to attack otherwise.

Advertisement

In this article, you'll learn about several different types of bunker buster so you will understand how they work and where the technology is heading.

Conventional Bunker Busters

During the 1991 Gulf war, allied forces knew of several underground military bunkers in Iraq that were so well reinforced and so deeply buried that they were out of reach of existing munitions. The U.S. Air Force started an intense research and development process to create a new bunker-busting bomb to reach and destroy these bunkers. In just a few weeks, a prototype was created. This new bomb had the following features:

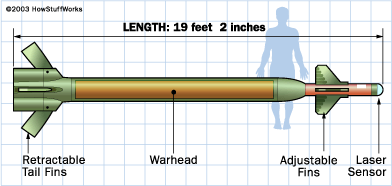

  • Its casing consists of an approximately 16-foot (5-meter) section of artillery barrel that is 14.5 inches (37 cm) in diameter. Artillery barrels are made of extremely strong hardened steel so that they can withstand the repeated blasts of artillery shells when they are fired.
  • Inside this steel casing is nearly 650 pounds (295 kg) of tritonal explosive. Tritonal is a mixture of TNT (80 percent) and aluminum powder (20 percent). The aluminum improves the brisance of the TNT -- the speed at which the explosive develops its maximum pressure. The addition of aluminum makes tritonal about 18 percent more powerful than TNT alone.
  • Attached to the front of the barrel is a laser-guidance assembly. Either a spotter on the ground or in the bomber illuminates the target with a laser, and the bomb homes in on the illuminated spot. The guidance assembly steers the bomb with fins that are part of the assembly.
  • Attached to the end of the barrel are stationary fins that provide stability during flight.

The finished bomb, known as the GBU-28 or the BLU-113, is 19 feet (5.8 meters) long, 14.5 inches (36.8 cm) in diameter and weighs 4,400 pounds (1,996 kg).

Advertisement

Busting a Bunker

From the description in the previous section, you can see that the concept behind bunker-busting bombs like the GBU-28 is nothing but basic physics. You have an extremely strong tube that is very narrow for its weight and extremely heavy.

The bomb is dropped from an airplane so that this tube develops a great deal of speed, and therefore kinetic energy, as it falls.

Advertisement

An F-117 Nighthawk engages its target and drops a bunker buster during a testing mission at Hill Air Force Base, Utah.
Photos courtesy U.S. Department of Defense

When the bomb hits the earth, it is like a massive nail shot from a nail gun. In tests, the GBU-28 has penetrated 100 feet (30.5 meters) of earth or 20 feet (6 meters) of concrete.

In a typical mission, intelligence sources or aerial/satellite images reveal the location of the bunker. A GBU-28 is loaded into a B2 Stealth bomber, an F-111 or similar aircraft.

An F-15E Strike Eagle pilot and a weapons system officer inspect a GBU-28 laser-guided bomb.
Photo courtesy U.S. Department of Defense

The bomber flies near the target, the target is illuminated and the bomb is dropped.

Air-to-air view of GBU-28 hard target bomb on an F-15E Eagle
Photo courtesy U.S. Department of Defense

The GBU-28 has in the past been fitted with a delay fuze (FMU-143) so that it explodes after penetration rather than on impact. There has also been a good bit of research into smart fuzes that, using a microprocessor and an accelerometer, can actually detect what is happening during penetration and explode at precisely the right time. These fuses are known as hard target smart fuzes (HTSF). See GlobalSecurity.org: HTSF for details.

The GBU-27/GBU-24 (aka BLU-109) is nearly identical to the GBU-28, except that it weighs only 2,000 pounds (900 kg). It is less expensive to manufacture, and a bomber can carry more of them on each mission.

Advertisement

Making a Better Bunker Buster

To make bunker busters that can go even deeper, designers have three choices:

  • They can make the weapon heavier. More weight gives the bomb more kinetic energy when it hits the target.
  • They can make the weapon smaller in diameter. The smaller cross-sectional area means that the bomb has to move less material (earth or concrete) "out of the way" as it penetrates.
  • They can make the bomb faster to increase its kinetic energy. The only practical way to do this is to add some sort of large rocket engine that fires right before impact.

One way to make a bunker buster heavier while maintaining a narrow cross-sectional area is to use a metal that is heavier than steel. Lead is heavier, but it is so soft that it is useless in a penetrator -- lead would deform or disintegrate when the bomb hits the target.

Advertisement

One material that is both extremely strong and extremely dense is depleted uranium. DU is the material of choice for penetrating weapons because of these properties. For example, the M829 is an armor-piercing "dart" fired from the cannon of an M1 tank. These 10-pound (4.5-kg) darts are 2 feet (61 cm) long, approximately 1 inch (2.5 cm) in diameter and leave the barrel of the tank's cannon traveling at over 1 mile (1.6 km) per second. The dart has so much kinetic energy and is so strong that it is able to pierce the strongest armor plating.

Depleted uranium is a by-product of the nuclear power industry. Natural uranium from a mine contains two isotopes: U-235 and U-238. The U-235 is what is needed to produce nuclear power (see How Nuclear Power Plants Work for details), so the uranium is refined to extract the U-235 and create "enriched uranium." The U-238 that is left over is known as "depleted uranium."

U-238 is a radioactive metal that produces alpha and beta particles. In its solid form, it is not particularly dangerous because its half-life is 4.5 billion years, meaning that the atomic decay is very slow. Depleted uranium is used, for example, in boats and airplanes as ballast. The three properties that make depleted uranium useful in penetrating weapons are its:

  • Density - Depleted uranium is 1.7 times heavier than lead, and 2.4 times heavier than steel.
  • Hardness - If you look at a Web site like WebElements.com, you can see that the Brinell hardness of U-238 is 2,400, which is just shy of tungsten at 2,570. Iron is 490. Depleted uranium alloyed with a small amount of titanium is even harder.
  • Incendiary properties - Depleted uranium burns. It is something like magnesium in this regard. If you heat uranium up in an oxygen environment (normal air), it will ignite and burn with an extremely intense flame. Once inside the target, burning uranium is another part of the bomb's destructive power.

These three properties make depleted uranium an obvious choice when creating advanced bunker-busting bombs. With depleted uranium, it is possible to create extremely heavy, strong and narrow bombs that have tremendous penetrating force.

But there are problems with using depleted uranium.

Advertisement

Tactical Nuclear Weapons

The problem with depleted uranium is the fact that it is radioactive. The United States uses tons on depleted uranium on the battlefield. At the end of the conflict, this leaves tons of radioactive material in the environment. For example, Time magazine: Balkan Dust Storm reports:

NATO aircraft rained more than 30,000 DU shells on Kosovo during the 11-week air campaign… About 10 tons of the debris were scattered across Kosovo.

Perhaps 300 tons of DU weapons were used in the first Gulf war. When it burns, DU forms a uranium-oxide smoke that is easily inhaled and that settles on the ground miles from the point of use. Once inhaled or ingested, depleted-uranium smoke can do a great deal of damage to the human body because of its radioactivity. See How Nuclear Radiation Works for details.

Advertisement

The Pentagon has developed tactical nuclear weapons to reach the most heavily fortified and deeply buried bunkers. The idea is to marry a small nuclear bomb with a penetrating bomb casing to create a weapon that can penetrate deep into the ground and then explode with nuclear force. The B61-11, available since 1997, is the current state of the art in the area of nuclear bunker busters.

From a practical standpoint, the advantage of a small nuclear bomb is that it can pack so much explosive force into such a small space. (See How Nuclear Bombs Work for details.) The B61-11 can carry a nuclear charge with anywhere between a 1-kiloton (1,000 tons of TNT) and a 300-kiloton yield. For comparison, the bomb used on Hiroshima had a yield of approximately 15 kilotons. The shock wave from such an intense underground explosion would cause damage deep in the earth and would presumably destroy even the most well-fortified bunker.

From an environmental and diplomatic standpoint, however, the use of the B61-11 raises a number of issues. There is no way for any known penetrating bomb to bury itself deeply enough to contain a nuclear blast. This means that the B61-11 would leave an immense crater and eject a huge amount of radioactive fallout into the air. Diplomatically, the B61-11 is problematic because it violates the international desire to eliminate the use of nuclear weapons. See FAS.org: Low-Yield Earth-Penetrating Nuclear Weapons for details.

For more information on the GBU-28, the B61-11 and depleted uranium, check out the links on the next page.
