How are fossil replicas made?

By: Tracy V. Wilson  |
The Argentinosaurus replica at Fernbank Museum of Natural History is definitely bigger than a bread box. See more dinosaur pictures.
Photo courtesy Fernbank Museum of Natural History
Key Takeaways
  • Fossil replicas are made using a mold and cast method, where the original fossil is used to create a detailed mold, which is then filled with resin or plastic to form a cast.
  • These replicas allow museums and researchers to display and study dinosaurs and other prehistoric creatures without risking damage to the original fossils, which are often too heavy or fragile.
  • Advanced techniques like rapid prototyping, using CT scans for 3-D mapping, and materials such as dental molding for fieldwork, make it possible to create accurate and detailed reproductions of fossils.

Argentinosaurus is one of the largest dinosaurs ever discovered. You can see what its skeleton looked like at Fernbank Museum of Natural History in Atlanta, Ga. The Argentinosaurus skeleton in the museum's great hall dwarfs everything else in the room. From nose to tail, it's more than 120 feet (36.5 meters) long, and some of its vertebrae are more than 5 feet (1.5 meters) wide. If you walk up the stairs to the second-floor landing to get a better look, the dinosaur's hip will be roughly at eye level.

­But when you look at this prehistoric giant, you're not seeing prehistoric bones. The bones in the Argentinosaurus skeleton are fossil replicas made of hollow plastic. This doesn't mean a trip to Fernbank to see dinosaur skeletons would be a waste, though. Without fossil replicas, no one would be able to see an Argentinosaurus skeleton without going to Argentina.


This is just one reason why a museum or collector might have fossil replicas instead of real fossils. Researchers and museums can use replicas to share rare fossils or fill in missing gaps from skeletons. Real dinosaur fossils can also be too heavy to be mounted in a museum, making lightweight replicas a more practical choice.

Replicas can even help protect fossils. The process of making the replica gives curators and paleontologists a chance to evaluate the original, repair damage and take steps to preserve the fossil if necessary. Some real specimens are so fragile that displaying them in a museum would eventually cause their destruction. Museums put exact replicas on display while placing the originals in protective storage. Transporting replicas from one museum to another is usually safer than transporting originals -- there's less chance of losing or destroying the original specimens.

And while most paleontologists conduct research using real fossils, replicas can act as stand-ins, too. For example, because it's so big, studying the way an Argentinosaurus moved would be almost impossible using a full-sized skeleton. But by creating a small-scale replica, researchers could move bones around to figure out how they moved in relation to each other.

For fossil replicas to do all this, they have to be as accurate as possible. But how can a replica be finely detailed, lightweight and sturdy all at the same time? We'll look at the making of accurate reproductions next.


Making a Fossil Replica

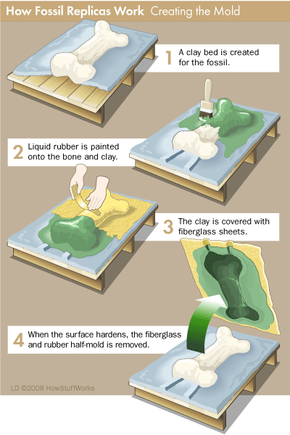

The first phase in making many replicas is constructing a mold.
© 2008 HowStuffWorks

A good fossil replica has to be detailed enough to show all the features of the original. But it can't be made of delicate material -- it has to be strong enough to support its own weight and withstand environmental stresses. Today, there are lots of different methods and materials used to achieve these two goals.

One of the most common methods of making a fossil replica is the mold and cast method. Typically, this process follows the same basic steps. The person making the fossil:


  1. Makes a clay base to support the fossil
  2. Paints the exposed side of the fossil with a flexible material, such as liquid rubber or dental molding, after coating the fossil with a release agent -- like diluted detergent -- if necessary, to safely free the fossil from the mold material
  3. Reinforces the flexible material with something sturdier, like fiberglass sheets
  4. Removes the finished mold and repeats the process for the other side

These steps may be impractical for the bones of an enormous dinosaur like Argentinosaurus. To make the replica of the dinosaur housed at Fernbank Museum of Natural History, sculptors created an artificial skeleton out of foam and clay and used it as the basis for the mold [source: Boyle]. A similar process can also allow researchers to recreate bones that are missing or damaged from the original skeleton.

The second phase is using the mold to make a cast.
© 2008 HowStuffWorks

The next major step is to make a cast of the mold. Typically, this involves filling the mold with a resin or plastic. Once the cast has hardened, artists can dye or paint it to match the original fossil. Museum staff can assemble these casts using steel supports called armatures to create a skeleton for display.

The mold-and-cast method is common, but it isn't practical for all types of fossils. The mummified hadrosaur known as Leonardo, for instance, is one solid piece rather than a collection of separate bones. To make a replica of Leonardo, Ford Motor Companyused rapid prototyping. The first step was to use computed tomography (CT) scans to create a 3-D map of Leonardo's body. The next was to use stereolithography and selective laser sintering to produce a physical reproduction of that map. Both of these technologies use lasers to solidify a liquid or powdered substance, creating a model [source: Ford]. Researchers have used similar technologies, sometimes relying on laser scans or other measurements to create the original map. For large dinosaurs, it can take weeks to perform all the scans, resulting in enormous data files used to create the reproduction.

Right now, paleontologists can use materials like dental molding to create fossil molds in the field. Increasingly portable technology will also make it easier for researchers to collect the data needed to make a reproduction without ever leaving the dig site. But amateur reproduction of fossils in the field is another story. Even an experienced researcher can damage a fossil when trying to make a reproduction. In certain cases, like creating casts of dinosaur tracks, some damage is inevitable. Plaster and other casting materials can also permanently stain fossils, so it's a good idea to let the experts handle the molding and casting.


Frequently Asked Questions

Can fossil replicas be used for educational purposes outside of museums?
Yes, fossil replicas are widely used in educational settings like schools and universities to provide hands-on learning experiences without the risk of damaging valuable original fossils.
How do the costs of creating fossil replicas compare to the costs of excavating and preserving real fossils?
Creating fossil replicas is generally less expensive than the excavation, transportation and preservation of real fossils, making replicas a cost-effective solution for display and study.
