How SpaceShipOne Works


SpaceShipOne sits on the ramp on its landing gear.
SpaceShipOne sits on the ramp on its landing gear.
Photo courtesy Scaled Composites, LLC

While White Knight is an impressive aircraft, there is no doubt who is the star of the show: SpaceShipOne.

SpaceShipOne is described by Scaled Composites as a "three-place, high-altitude research rocket, designed for sub-orbital flights to 100 km altitude." Perhaps one of the most amazing things about SpaceShipOne is the fact that it transforms into three different configurations during the course of its flight. These configurations put SpaceShipOne in the ideal shape for boost, entry and landing. (See the previous section How Does SpaceShipOne Work? for images of all three configurations.) While it is technically a spaceship, it spends most of its time in the Earth's atmosphere during the course of its flight. The one configuration that stands out the most is the "feather" configuration.

Image courtesy Scaled Composites, LLC

According to SpaceShipOne: Riding a White Knight to Space:

SpaceShipOne ... is designed to reenter like a stable shuttlecock, then glide and land like an airplane. The wings, with an ultralow aspect ratio of 1.7, span 16.4 ft [~5 m]. Their size is based on the requirement to provide enough lift to rotate the vehicle into its ascent attitude after horizontal launch, and to permit conventional gliding approaches and landings. At the top of the climb, the rear part of the wing and the tailbooms -- still known collectively as the "feather" -- hinge upwards. As the spacecraft starts to reenter the atmosphere, the feather stabilizes it in a flat attitude with the slab-like wings at right angles to the airflow.

This creates so much drag in relation to the vehicle's weight (without fuel) that peak heating is moderate. SpaceShipOne is constructed from conventional graphite-epoxy composite materials, with some limited use of high-temperature epoxies. Hotter sections are protected by a simple "trowel-on" ablative thermal protection layer. In the worst case envisaged by the test team, the fuselage may be damaged but the occupants will be unharmed.

SpaceShipOne launches vertically into space from high in the atmosphere. Once it reaches the top of the arc created by its rocket boost, it loses momentum and falls back to Earth. To slow its descent, SpaceShipOne transforms into a configuration that exposes the greatest surface area to the air flow. This creates tremendous drag and slows the ship down as it falls.

Image courtesy Scaled Composites, LLC

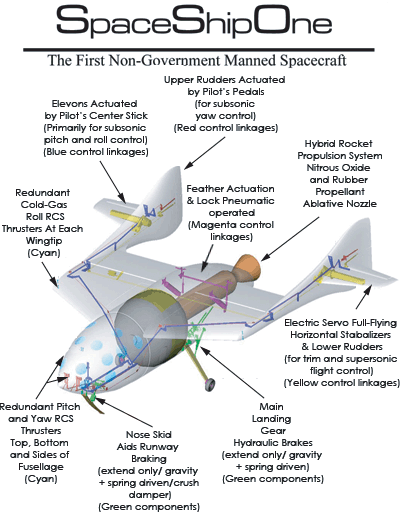

That is just the tip of the iceberg as far as innovation built into SpaceShipOne.

SpaceShipOne features:

  • Airborne launch
  • INS/GPS navigational & flight director
  • Rubber-nitrous hybrid rocket propulsion system
  • Graphite/epoxy primary structure
  • Three-place "sea level, shirt sleeve" cabin environment
  • Cabin nose removal for emergency egress; use of side plug door for normal entry and exit
  • Dual-pane windows, dual seals on doors and controls
  • New, low-maintenance thermal protection system
  • "Feather" atmospheric entry Features list generated by Scaled Composites LLC

In the next section, we'll discuss the unique rocket motor that throws SpaceShipOne into space.
